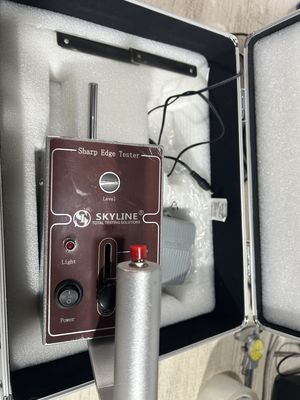

Name: EN71-1 / ISO 8124-1 Compliant 1.35LB Sharp Edge Testing Machine with 220V Power Supply for Toys Safety
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S12
Price: 4,500.00 USD
Availability: InStock

Rumah Produk peralatan pengujian laboratorium

EN71-1 / ISO 8124-1 Compliant 1.35LB Sharp Edge Testing Machine with 220V Power Supply for Toys Safety

Detail produk:

Tempat asal:	CINA
Nama merek:	SKYLINE
Sertifikasi:	CE
Nomor model:	SL-S12

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	dapat dinegosiasikan
Kemasan rincian:	Kotak Kayu Poli
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	1 pasang/minggu

Kontak

Detil Deskripsi produk

Catu daya:	220V,60Hz (Bisa Kustom)	Jaminan:	12 Bulan, 1 Tahun, satu tahun
Berat:	Sekitar 13Kg	Aplikasi:	Mainan Anak, Produk Anak
Standar:	EN71-1/ASTM F 963/16CFR1500.49/ISO 8124-1	Kapasitas:	1,00lbf/1,35lbf/1,5lbf (Dapat disesuaikan)
Warna:	Abu-abu dan putih, Abu-abu	dimensi:	290x180x115mm
Menyoroti:	EN71-1 / ISO 8124-1 compliant Sharp Edge Testing Machine , 1.35LB capacity Toys Testing Equipment , 220V power supply EN71-1 Testing Machine

Manual or Foot-Operated EN71-1 / ISO 8124-1 Toys Testing Equipment - 1.35LB Sharp Edge Testing Machine

Machine Introduction

This testing equipment determines whether toy edges present an unreasonable risk of injury by identifying hazardous sharp edges according to international safety standards.

Product Information

The tester evaluates accessible edges on toys to determine injury potential. A PTFE tape-coated mandrel rotates 360° along the test edge. If the tape is cut ≥13mm (50% of circumference), the edge is classified as hazardous. This test is mandatory for toys intended for children under 8 years, both before and after use/abuse testing.

Test Principle

The hardened steel shaft (simulating children's fingers) meets strict specifications:

Surface Rockwell hardness: ≥40
Surface roughness: ≤0.40 microns
Diameter: 9.35mm ± 0.12mm
Applied force: 6N (1.35lb) at 23mm/sec ±4mm/sec rotation speed

The test edge is classified as hazardous if it cuts through the simulated skin tape during rotation.

Testing Procedure & Results Interpretation

Apply PTFE tape to mandrel and rotate 360° along test edge
Edge is hazardous if tape is cut ≥50% of circumference
Test only accessible edges identified during toy evaluation
For untestable edges, simulate conditions or test components separately
Maintain perpendicular alignment and consistent pressure during testing

Technical Specifications

Dimensions (LWH)	291910cm
Weight	3.5kg
Speed	1.00±0.08 In/s
Applied Force	1.35LB
Material	Stainless Steel
Accessories	PTFE Tape Set, Foot Switch, Power Charger, Operating Manual
Compliance Standards	ASTM F963 4.7, EN 71-1 8.11, 16 CFR 1500.49, ISO 8124-1 5.8

Technical Parameters

Table 1: Rotary Mandrel Diameter

Standard	EN71-1	ASTM F 963/16CFR1500.49
Nominal Value	φ(9.53±0.12)mm	φ(0.375±0.005)inch
Measured Value	φ9.450mm	φ0.3720 inch

Table 2: Applied Force

Standard	EN71-1	ASTM F 963/16CFR1500.49
Nominal Value	(6±0.5)N	1.35 lbf
Measured Value	6.00N	1.35 lbf

Table 3: Rotation Speed

Standard	EN71-1	ASTM F 963/16CFR1500.49
Nominal Value	(23±4)mm/s	(1.00±0.08)inch/s
Measured Value	19.3mm/s	0.760inch/s

Table 4: Surface Roughness

Standard	EN71-1	ASTM F 963/CFR150.49
Nominal Value	≤0.4 μm	≤16 micro inch
Measured Value	0.15 μm	5.9 micro inch
