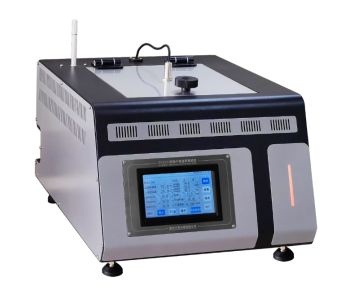

Name: AATCC 201 Standard Heated Plate Dry Rate Tester with 300mm×300mm Heating Plate and 37±0.5oC Temperature Control for Fabric and Textile
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-F63
Price: 4,500.00 USD
Availability: InStock

Rumah Produk pengujian peralatan tekstil

AATCC 201 Standard Heated Plate Dry Rate Tester with 300mm×300mm Heating Plate and 37±0.5oC Temperature Control for Fabric and Textile

Detail produk:

Tempat asal:	CINA
Nama merek:	Skyline
Sertifikasi:	CE, Rosh, Calibration
Nomor model:	SL-F63

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	dapat dinegosiasikan
Kemasan rincian:	Kasing kayu lapis
Waktu pengiriman:	15 hari kerja
Syarat-syarat pembayaran:	T/T, L/C, D/A, D/P, Western Union, MoneyGram, dalam bentuk tunai
Menyediakan kemampuan:	30 unit / bulan

Kontak

Detil Deskripsi produk

Puputan:	dapat menghasilkan aliran udara 0,2-3m / s	Pelat Pemanas:	Ukuran 300mm×300mm±1mm
Lembaran pemanas fleksibel:	Ukuran 300mm×300mm±1mm	Papan gabus insulasi panas:	Ukuran 300mm×300mm±1mm
Suhu Pelat Pemanas:	37±0,5oC (dengan perlindungan terhadap overheating)	Kecepatan angin:	0-2,5 m/dtk ± 0,1 m/dtk
sensor suhu inframerah:	15-50oC±0,1oC	Transmisi data:	Pengiriman data USB
Antarmuka Uji:	kurva dan grafik hidup berdampingan	Laporan Tes:	menyimpan otomatis, mudah dicetak
Catu daya:	Tegangan AC 230V, 50Hz/60Hz	Ukuran keseluruhan:	450(P)×320(L)×170(T)mm
Berat:	Sekitar 45Kg
Menyoroti:	AATCC 201 Standard Heated Plate Dry Rate Tester , 300mm×300mm Heating Plate Fabric Drying Rate Tester , 37±0.5oC Temperature Control Textile Drying Rate Tester

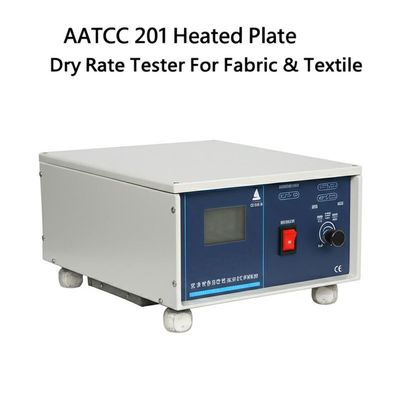

AATCC 201 Heated Plate Dry Rate Tester For Fabric & Textile

Product Description

This automatic test instrument measures the drying rate of textiles according to the American AATCC 201 test standard requirements.

Standards Compliance

Conforms to AATCC 201 standard specifications.

Key Features

Large color touch screen display with Chinese/English menu interface
32-bit multi-function motherboard from STMicroelectronics for core control

Technical Parameters

Parameter	Specification
Bellows Air Flow	0.2-3m/s
Heating Plate	300mm×300mm±1mm
Flexible Heating Sheet	300mm×300mm±1mm
Heat Insulation Cork Board	300mm×300mm±1mm
Heating Plate Temperature	37±0.5°C (with overheating protection)
Wind Speed	0-2.5m/s±0.1m/s
Infrared Temperature Sensor	15-50°C±0.1°C
Data Transmission	USB
Test Interface	Curves and charts display
Test Report	Automatic saving and printing
Power Supply	AC 230V, 50Hz/60Hz
Dimensions	450(L)×320(W)×170(H)mm
Weight	Approximately 45kg

Standard Configuration

1 host unit
1 computer
1 product certificate
1 product manual
4 product quality tracking feedback sheets
1 product album
