UL94 Flammability Testing Equipment with 700℃ Heating Temperature Compliance with IEC 60695-11-4 Horizontal and Vertical Flammability Tester

Nama Merek:	SKYLINE
Moq:	1
harga:	Negotiate
Ketentuan Pembayaran:	T/T
Kemampuan pasokan:	1 pasang/bulan

Informasi Detail

Deskripsi produk

Informasi Detail

Tempat asal:

Tiongkok

Sertifikasi:

Kisaran suhu pemanasan:

700℃

Diameter sampel:

(misalnya, 125mm x 13mm)

Perangkat lunak kontrol:

Perangkat lunak khusus yang dikembangkan sendiri

Kemasan rincian:

Kotak Kayu Poli

Menyediakan kemampuan:

1 pasang/bulan

Menyoroti:

700℃ Heating Temperature Flammability Testing Equipment

Compliance with IEC 60695-11-4 Flammability Tester

Horizontal and Vertical UL94 Tester

Deskripsi produk

UL94 Flammability Testing Equipment IEC 60695-11-4 Horizontal Vertical Flammability Tester

Product Overview

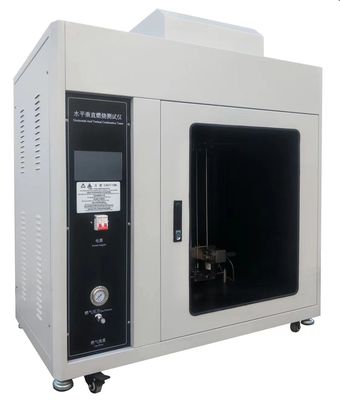

Horizontal and Vertical Flammability Testing Machine featuring UL 94 flame chamber with both horizontal and vertical configurations. Designed for flammability testing of plastic materials used in consumer electric devices and appliances. Constructed with stainless steel and black interior, featuring a large sliding window for optimal visibility. Includes fully adjustable specimen support and precision gas flow controls.

Main Components

Combustion test chamber: Sealed or ventilated controllable box (≥0.5m³ volume) made of high-temperature resistant stainless steel
Standard burner (Bunsen burner): Generates standard flame (50W flame height: 20±1mm)
Sample fixture: Adjustable to precise horizontal or vertical positions
Gas supply system: Provides ≥98% pure methane with high-precision flow meters and pressure gauges (gas not included)
Timing device: ≥0.1s accuracy for measuring flame application and afterflame times
Measuring tools: Includes flame height gauges and rulers

Testing Standards

UL 94-2006
IEC 60695-11-3
IEC 60695-11-4
UL94HB: Horizontal Burning Test
V-0,1,2: 20mm Vertical Burning Test
94-5VA,B: 500W(125mm) Vertical Burning Test
94VTM-0,1,2: Thin Material Vertical Burning Test
94HBF,94HF-1,2: Horizontal Burning Foamed Material Test
IEC 60695-11-10: 50 W horizontal/vertical flame test methods
IEC 60695-11-20: 500 W flame test methods

Technical Parameters

Parameter	500W (5V class)	50W (HB/V class)
Test Flame	500W (V-0,V-1,V-2 classification)	50W (V-0,V-1,V-2 classification)
Burner Tube	Φ 9.5mm±0.3mm	Φ 9.5mm±0.3mm
Burning Angle	0°,20°,45°	0°,20°,45°
Thermocouple	Type K (Ni/Cr - Ni/Al)	Type K (Ni/Cr - Ni/Al)
Thermocouple Size	0.5 mm	0.5 mm
Standard Copper Block	9mm±0.01mm, 10g±0.05g	5.5mm±0.01mm, 76g±0.01g
Time for Temperature Increase	100°C→700°C: 54s±2s	100°C→700°C: 44s±2s
Gas Flow	965±32ml/min	105±10ml/min
Gas Supply	Methane, ≥98% purity	Methane, ≥98% purity
Water-column	125m±5mm	<10mm
Test Time	54±2s	44±2s
Flame Height Indicator	40±1mm	20±1mm
Volume Of Chamber	>0.5m³, black interior	>0.5m³, black interior
Conform to standard	UL94, IEC60695-11-3, IEC60695-11-20	UL94, IEC60695-11-4, IEC60695-11-10
