EN 13036-4 Compliant Pendulum Slip Resistance Tester for Road and Airfield Surface

Name: EN 13036-4 Compliant Pendulum Slip Resistance Tester for Road and Airfield Surface
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-FL609
Price: 4,500.00 USD
Availability: InStock

Nama Merek:	Skyline
Nomor Model:	SL-FL609
Moq:	1
harga:	dapat dinegosiasikan
Ketentuan Pembayaran:	T/T, L/C, D/A, D/P, Western Union, MoneyGram, dalam bentuk tunai
Kemampuan pasokan:	30 unit / bulan

Informasi Detail

Deskripsi produk

Informasi Detail

Tempat asal:

Tiongkok

Sertifikasi:

CE, Rosh, Calibration

Berat pendulum::

1500g ± 30g

Jarak dari pusat gravitasi bandul ke ujung:

410mm±5mm

Tekanan statis lembaran karet di tanah:

22,2N ± 0,5N

22,2N ± 0,5N:

126mm±1mm

Jarak dari tepi bawah lembaran karet ke pusat ayunan pendulum:

510mm±2mm

Dimensi lembaran karet:

6.35mm x 25.4mm x 76.2mm

Kekerasan lembaran karet di pantai:

55±5HD

Penunjuk:

Berat ≤85g, panjang 300mm ± 1mm

Sudut antara lembaran karet dan horizontal:

26±3°

Dimensi mesin:

620*450*590 (Sekitar 14kg)

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

30 unit / bulan

Menyoroti:

EN 13036-4 compliant slip tester

pendulum slip resistance tester

road surface slip testing equipment

Deskripsi produk

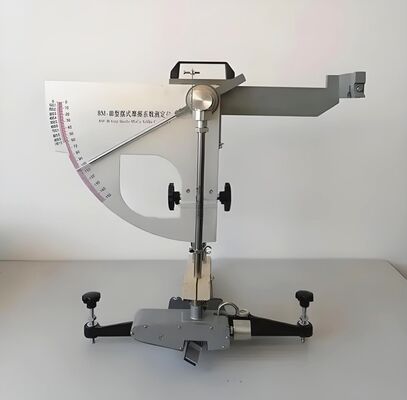

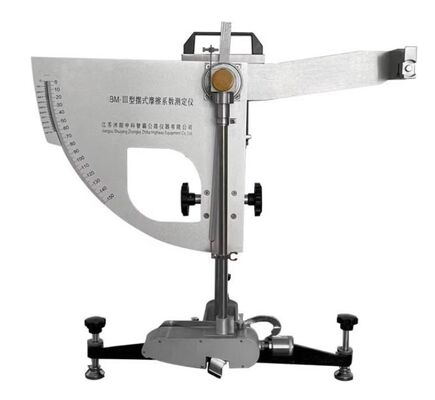

EN 13036-4 Compliant Pendulum Slip Resistance Tester for Road and Airfield Surface

EN 13036-4 Pendulum Slip Resistance Tester

Product Introduction

This product is primarily used for friction coefficient detection in high-grade highways, laboratories, and airport runways. It can also evaluate the anti-slip performance of rubber runways, floor tiles, and other materials requiring anti-slip properties. The tester can assess road surface anti-slip performance (with options to adjust film hardness to 96 or modify normal static pressure from 22.2N to 24.5N). Additionally, it determines the polishing value of test pieces after stone material accelerated polishing machine tests. The pendulum tester serves as the testing instrument for stone material accelerated polishing machines.

Standard: EN 13036-4

Technical Parameters

Parameter	Specification
Weight of pendulum	1500g ± 30g
Distance from the center of gravity of pendulum to the end	410mm ± 5mm
The static pressure of the rubber sheet on the ground	22.2N ± 0.5N
Sliding length of pendulum on the road surface	126mm ± 1mm
Distance from the lower edge of the rubber sheet to the swing center of the pendulum	510mm ± 2mm
Dimension of rubber sheet	6.35mm x 25.4mm x 76.2mm
Shore hardness of rubber sheet	55 ± 5 HD
Pointer	Weight ≤85g, length 300mm ± 1mm
The Angle between the rubber sheet and the horizontal	26 ± 3°
Machine Dimension	620450590mm (About 14kg)

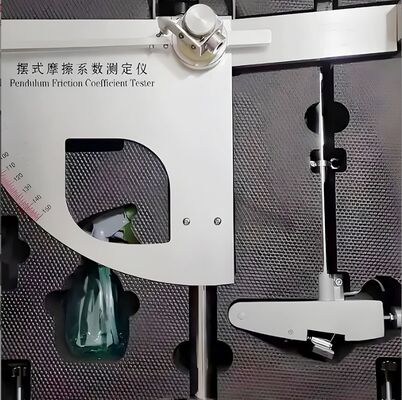

Part List

Scaleplate *1
Spray bottle *1
Squeegee *1
Pendulum friction slide & Rubber sheet *1:
- For Road surface: 6.35mm x 25.4mm x 76.2mm
- For coarse aggregate: 31.75mm x 25.4mm x 6.35mm (Optional)
Rubber sheet *1:
- For Road surface: 6.35mm x 25.4mm x 76.2mm, 55HD/94HD (Optional)
- For coarse aggregate: 31.75mm x 25.4mm x 6.35mm, 55HD/94HD (Optional)
