ANSI/BIFMA X5.1-2017 11;12 Chair Stability Tester Forward Tester Rear Stability Testing Disk

Name: ANSI/BIFMA X5.1-2017 11;12 Chair Stability Tester Forward Tester Rear Stability Testing Disk
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T23
Price: 4,500.00 USD
Availability: InStock

Nama Merek:	SKYLINE
Nomor Model:	SL-T23
Moq:	1
harga:	negoitable
Ketentuan Pembayaran:	T/T
Kemampuan pasokan:	1 unit/bulan

Informasi Detail

Deskripsi produk

Informasi Detail

Tempat asal:

Cina

Sertifikasi:

Gaya tarik horisontal:

20N

Tenaga Mesin:

Sekitar 20W

Dimensi instrumen:

1350mmx1000mmx1850mm (L * W * H)

Hal-hal utama pengujian:

Uji stabilitas kursi kantor ke depan dan ke belakang

Memuat berat:

Berat stabilitas belakang: 130kg

Kemasan rincian:

Kasus Kayu Lapis

Menyediakan kemampuan:

1 unit/bulan

Menyoroti:

ANSI BIFMA chair stability tester

furniture testing equipment with disk

forward rear stability testing machine

Deskripsi produk

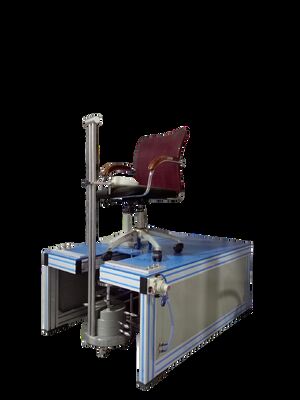

ANSI/BIFMA X5.1-2017 11;12 Chair Stability Tester Forward Tester Rear Stability Testing Disk

Product Overview

This specialized testing equipment is designed to evaluate the front and rear stability of office chairs, ensuring they meet rigorous safety and performance standards.

Compliance Standards

ANSI/BIFMA X5.1-2017 Sections 11 & 12

Technical Specifications

Parameter	Specification
Cylinder Stock	250mm
Horizontal Force	20N
Engine Power	Approximately 20W
Loading Position	60mm away from the front center of the seat surface
Seat Compression Plate	Diameter 200mm, arc surface 300mm
Machine Dimensions	1350mm × 1000mm × 1850mm (L × W × H)
Test Area	780mm × 740mm (L × W)

Testing Capabilities

Office chair forward stability testing
Office chair rear stability testing

Loading Weight Requirements

Forward Stability: European standard 60kg, American standard 61kg
Rear Stability: 130kg
