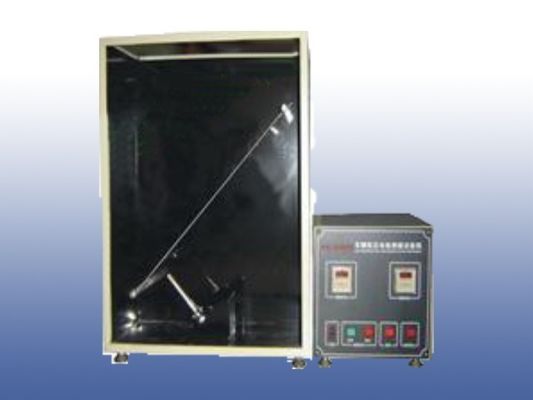

Name: DIN7520 Alat Uji Mudah Terbakar Mobil Bahan Interior Vertikal Flammability Tester
Brand: SKYLINE
SKU: SL-7604
Rating: 4.9 (168 reviews)

Rumah Produk Peralatan Uji Mudah-menyala

DIN7520 Alat Uji Mudah Terbakar Mobil Bahan Interior Vertikal Flammability Tester

Detail produk:

Tempat asal:	Cina
Nama merek:	SKYLINE
Sertifikasi:	CE
Nomor model:	SL-7604

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 unit
Harga:	negotiated
Kemasan rincian:	Kasus kayu lapis
Waktu pengiriman:	hari kerja 10
Syarat-syarat pembayaran:	T / T, L / C, Western Union, MoneyGram
Menyediakan kemampuan:	1 unit / bulan

Kontak

Detil Deskripsi produk

Standar:

DIN7520

ukuran penutup:

L385 * W204 * H360mm

Kompor:

I / D adalah 9.5mm

Sisir logam:

panjangnya ≥110mm

Cahaya Tinggi:

horizontal flammability tester

flammability test apparatus

Automobile Interior Material Vertikal Flammability Tester, Flaming Resistance Testing Equipment

Aplikasi

Diterapkan untuk menguji nyala bahan interior Mobil, seperti mobil, gerbong dan truk beban dll.

Standar

DIN7520

Parameter teknologi

Membakar waktu	0,01 ～ 99,99 / S / M / H terus menerus pengaturan waktu dan, ketika hingga nilai pengaturan bisa berhenti secara otomatis
Ukuran penutup	L385 * W204 * H360mm
Ukuran kotak kontrol	305X320X285 mm
Pembakar	I / D adalah 9.5mm
Posisi burner	Pusat nosel di bawah pusat ujung bebas spesimen, dan jaraknya 19mm
Sisir logam	Dengan panjang ≥110mm, ada 7 ～ 8 gigi bulat dan halus setiap jarak dalam 25mm
Penggaris besi	Akurasi adalah 1.0mm
Gas	Gas minyak cair (disediakan sendiri oleh pengguna)

Label:

tester mudah terbakar horisontal,

alat uji mudah terbakar
