Steel Construction Conveyor Belt Vertical Burning Test Chamber for ISO 340 and AS1334.10 Compliance

Steel Construction Conveyor Belt Vertical Burning Test Chamber for ISO 340 and AS1334.10 Compliance

Nama Merek: SKYLINE
Nomor Model: SL-FL856V
Moq: 1 Satuan
harga: negotiated
Ketentuan Pembayaran: T/T, L/C, Western Union, Moneygram
Kemampuan pasokan: 1 unit/ bulan
Informasi Detail
Deskripsi produk
Informasi Detail
Tempat asal:
Tiongkok
Sertifikasi:
CE
Bahan:
Baja
Standar:
ISO340
Bunsen Burner:
Diameter dalamnya 10.5mm
Sudut rotasi Bunsen Burner:
0 ° ～ 45 ° dapat disesuaikan
Termokopel:
Tipe K Armor
Rentang tampilan termokopel:
0 ～ 1300 ℃
Kemasan rincian:
kasus kayu lapis
Menyediakan kemampuan:
1 unit/ bulan
Menyoroti:

Steel Construction Vertical Burning Test Chamber

,

ISO 340 Flammability Test Chamber

,

AS1334.10 Conveyor Belt Vertical Burning Test Chamber

Deskripsi produk

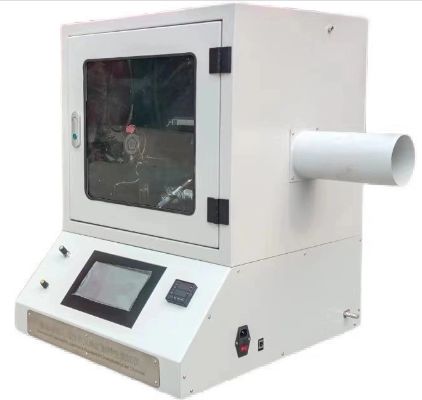

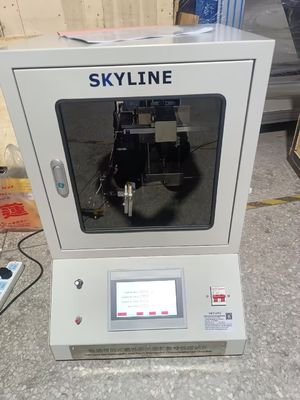

Conveyor Belt Vertical Burning Test Chamber
ISO 340 AS1334.10 compliant running belt vertical & horizontal fire test machine for evaluating conveyor belt flammability and flame propagation characteristics.
Product Specifications
Attribute Value
Materials Steel
Standards ISO340
Bunsen burner Inner diameter 10.5mm
Bunsen burner rotation angle 0°～45° adjustable
Thermocouple Type k armor
Thermocouple display range 0～1300℃
Scope of Application
This tester is suitable for conveyor belts and steel cord conveyor belts with textile bodies, designed to evaluate flammability and flame propagation characteristics of horizontally oriented conveyor belt samples.
Testing Principle
The ends of horizontally oriented conveyor belt specimens are exposed to flames for a specified duration. The response to ignition sources is evaluated by measuring flame duration after burner removal and afterglow duration when air passes through the sample.
Standards Compliance
Manufactured according to AS 1334.10 1994 and ISO 340-2022 standards for conveyor belt flammability testing requirements and methods.
Key Definitions
  • Flame duration: Continued burning after burner removal
  • Afterglow: Slow burning without flame
  • Flame period: Total flame duration per test group
  • Afterglow period: Total afterglow time per test group
  • Vertical test: Conducted according to ISO 340-2022
Technical Parameters
Parameter Specification
Ignition time setting range 0～999.9s
Combustion timing range 0～999.9s
Bunsen burner rotation angle 45°~90°
Test flame temperature 1000±20℃
Flame ruler 50～150/180mm
Combustion chamber dimensions 500mm x 500mm x 500mm
Combustion gas Propane gas, purity > 95%
Dimensions (WxDxH) 555 x 651 x 738mm
Weight ≈40kg
Power supply AC 220V±10%, 50～60Hz
