IEC 60695 Needle Flame Test Chamber

Name: IEC 60695 Needle Flame Test Chamber
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-F11
Price: 4,500.00 USD
Availability: InStock

Nama Merek:	SKYLINE
Nomor Model:	SL-F11
Moq:	1
harga:	dapat dinegosiasikan
Kemampuan pasokan:	15 set/bulan

Informasi Detail

Deskripsi produk

Informasi Detail

Tempat asal:

Cina

Sertifikasi:

CE, CO, Rosh, Form E, Calibrate Certificate

Kemasan rincian:

paket standar ekspor

Menyediakan kemampuan:

15 set/bulan

Menyoroti:

IEC 60695 needle flame tester

flammability test chamber equipment

needle flame test chamber warranty

Deskripsi produk

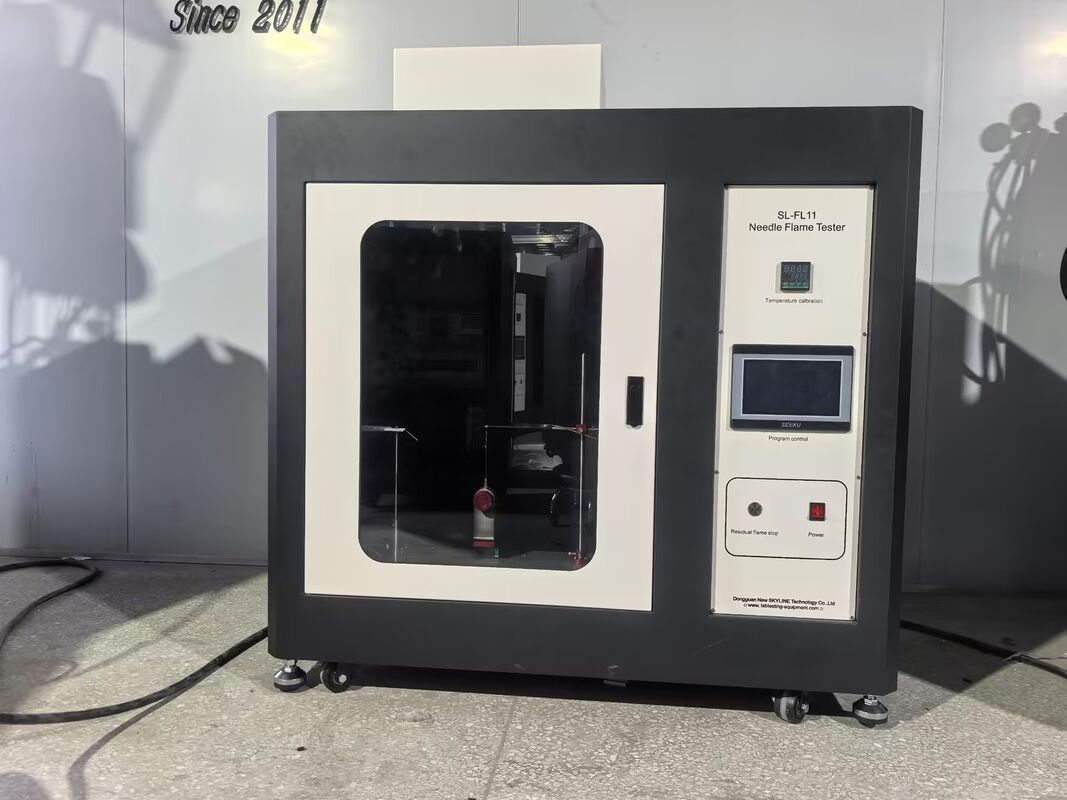

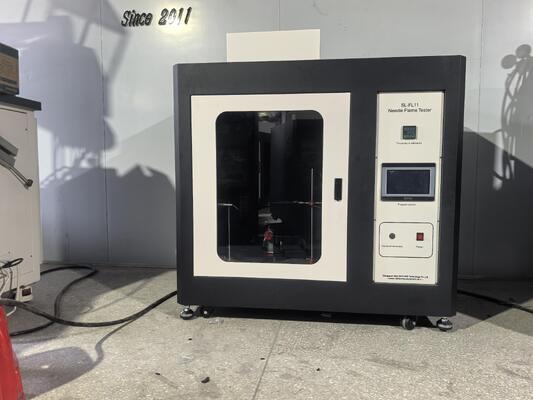

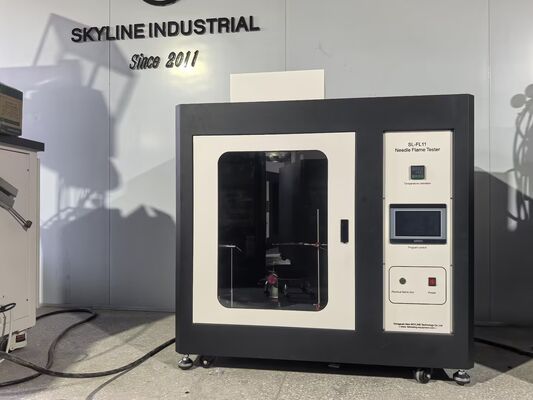

IEC 60695 Needle Flame Test Chamber

Electronic Product Flame Test Apparatus, IEC 60695 Needle Flame Test Chamber

Introduction

The Needle Flame Test Chamber evaluates fire resistance caused by internal faults such as leakage current in cables, wires, and similar components. This apparatus complies with Chinese GB4706.1, GB5169.5, IEC60695-2-2, and IEC61347-1 standards.

Applications

• Electrical and electronic products
• Components and accessories of household appliances

Key Features

All stainless steel and brass construction
Automatic burner ignition system
Digital displays for temperature and test timing
Large viewing window for convenient observation

Technical Specifications

Parameter	Specification
Needle Burner	Inner hole diameter Φ0.5mm ± 0.1mm, Diameter ≤Φ0.9mm, length ≥35mm, stainless steel
Burner Angle	0~45° (adjustable for flame height)
Thermocouple	Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath withstands 40°C~1100°C
Burning Time	0-999.9s ± 0.1s adjustable (typically 30s)
Hold Burning Time	0-999.9s ± 0.1s, automatic recording, manual timeout
Flame Height	12mm ± 1mm (with height measurement instruments)
Flame Gas	Butane gas, minimum 95% purity (bottled lighter gases acceptable)
Temperature Test Range	0~1000°C
Flame Temperature Requirements	From 100°C ± 2°C to 700°C ± 3°C in 23.5 seconds ± 1 second
Standard Copper Block	4mm ± 0.01mm, weight 0.58g ± 0.01g before drilling, Cu-ETP
Test Process	Automatic control with independent convulsions
Chamber	≥0.5m³
Control System	Single chip microcomputer + touch screen control
Applicable Standards	GB/T5169.10-2006, IEC60695-11-5:2000, UL746A
Power Supply	800VA, 220V, 48-60Hz
Display Panel Language	English (customization available)
