Foam&Plastics Horizontal and Vertical Flammability Tester

Name: Foam&Plastics Horizontal and Vertical Flammability Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-FL082
Price: 4,500.00 USD
Availability: InStock

Nama Merek:	SKYLINE
Nomor Model:	SL-FL082
Moq:	1
harga:	Negociate
Ketentuan Pembayaran:	Western Union, MoneyGram, T/T, L/C, D/A, D/P.
Kemampuan pasokan:	1 set/bulan

Informasi Detail

Deskripsi produk

Informasi Detail

Tempat asal:

Dongguan, Guangdong

Sertifikasi:

CE ISO

Kemasan rincian:

Kasus kayu

Menyediakan kemampuan:

1 set/bulan

Menyoroti:

Foam flammability tester for mattresses

Plastics flammability testing machine

Horizontal vertical mattress flammability tester

Deskripsi produk

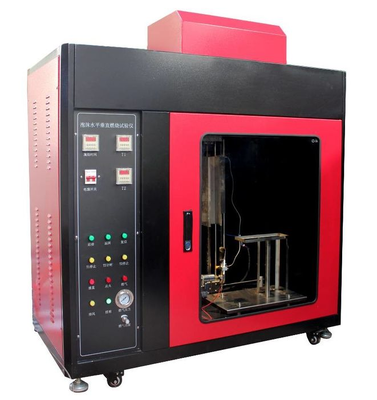

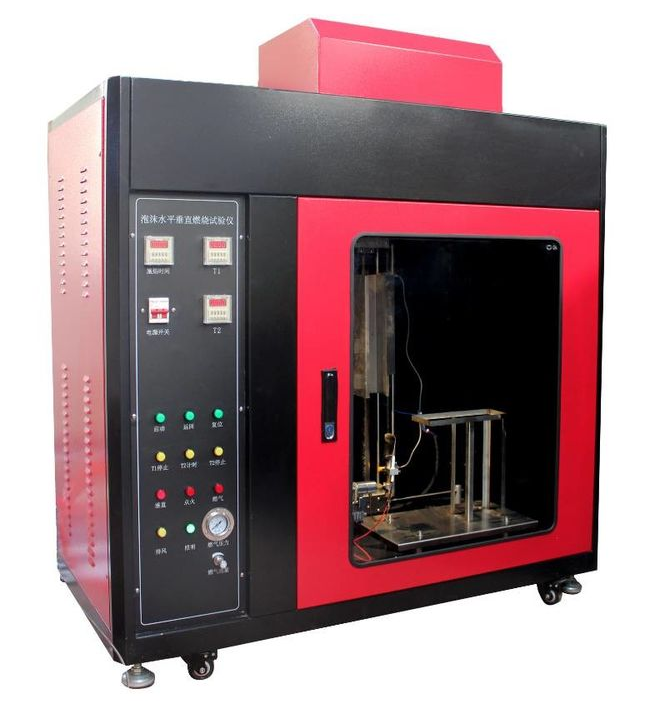

Foam & Plastics Horizontal and Vertical Flammability Tester

Advanced testing equipment designed to evaluate the combustion performance of plastic foam samples under controlled laboratory conditions.

Application

Suitable for laboratory testing under ISO 845:1985 standards, measuring the horizontal combustion performance of small plastic foam samples with density less than 250kg/m³ when exposed to small flames.

Compliance Standards

ISO 9772

Key Features

MCU control with automatic timing and reading capabilities
Adjustable Bunsen burner flame height: 15mm-100mm with flame height scale
Vertical sample holder adjustment: ≤ 100mm
Horizontal sample holder adjustment: ≤ 70mm
Horizontal sample holder accommodates 90° textile samples (optional)
Programmable Bunsen burner automatic ignition timing
Compatible with industrial methane gas (≥98% concentration) or equivalent propane gas

Technical Specifications

Parameter	Specification
Ambient Temperature	-10℃ ~ 30℃
Relative Humidity	≤85%
Power Supply	220V ± 10% 50HZ, less than 100W
Bunsen Burner Diameter	9.5mm ± 0.3mm
Burner Tilt Range	0-45°
Overall Dimensions	W 1160mm × D 600mm × H 1310mm (including feet)

Combustion Test Chamber

Volume: >0.5 cubic meters (approximately 900mm × 590mm × 1050mm)
Background: Black with illumination ≤ 20Lux

Gas Requirements

Primary gas source: Industrial methane gas with concentration ≥98% and calorific value (37±1) MJ/m³, requiring regulator and pressure gauge for uniform airflow. Alternative sources include mixed gas with calorific value (37±1) MJ/m³ or propane gas with calorific value (94±2) MJ/m³. For dispute resolution, industrial grade methane gas should be selected.

Standard Accessories

Power cord (1)
Igniter (1)
Horizontal sample rack (1)
Vertical sample rack (1)
Air supply pipe (1.5)
Spare scale (1)
